Stainless Steel Enclosure

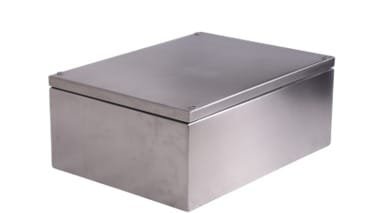

Stainless Steel Enclosure

SS industrial enclosures are manufactured in Material 1.4301/SS304 and thus assure extremely good resistance in harsh and aggressive environments and ideal ease of cleaning.
The lower enclosure section is designed to permit the simple installation of mounting plates or DIN rails. These enclosures provide good EMC screening, which can be improved even further by means of a special “EMC seal”.

  • Customization provided to standard enclosures including machining, Customized Powder Coating, screen printing, Accessories like Cable Glands, Terminal

  • Customization provided to standard enclosures including machining, Customized Powder Coating, screen printing, Accessories like Cable Glands, Terminal

  • Customization provided to standard enclosures including machining, Customized Powder Coating, screen printing, Accessories like Cable Glands, Terminal

Catalog
Add to List Remove to List
Enquire Now

Reach us via Email:

Product Highlights

  • Universal industrial enclosures
  • No gaps between lid/base
  • Optional individual sizes and versions
  • Ingress protection IP66 und IP69K

Scope Of Delivery

Enclosure base with screw-mounting lugs and threaded holes for DIN rail attachment, featuring 4 embossed bottom sections with mounting openings and closure plugs.
Alternative: Without mounting openings, lid with internally threaded studs and captive lid screws.

Fields Of Application

  • Wide range of applications due to their quality and structure
  • Rough and aggressive areas
  • EMC hazardous areas

Additional Services

Machining, Surface Finish, Assembly of Cable Glands / DIN Rail / Mounting Plate / Terminal Blocks / Vent Plugs

Technical Information

MaterialStainless steel, 1.25 mm or 1.5 mm; 1.4301 / 304
1.4404 / 316 available on request
SurfaceBrushed finish, grain 240 to grain 320
Protection classIP66 according to EN 60529
IP67 / IP69 available on request
Temperature rangeVMQ (Silicone) seal (standard): -60°C to +175°C
EMC (Silicone) seal (optional): -55°C to +200°C
Impact resistanceIK 10 (20 Joules)
AccessoriesMounting Plates, Mounting Brackets, Internal Hinges, External Hinges
Certifications & ApprovalsCE, UL, REACH, RoHS, IP, IK,
Technical Information

Product Range

Product ImageOGPL Article No.OGPL Drawing No.Length (A) (mm) Width (B) (mm)

Depth (C) (mm)

Technical Drawings3D ModelsTechnical Data Sheet

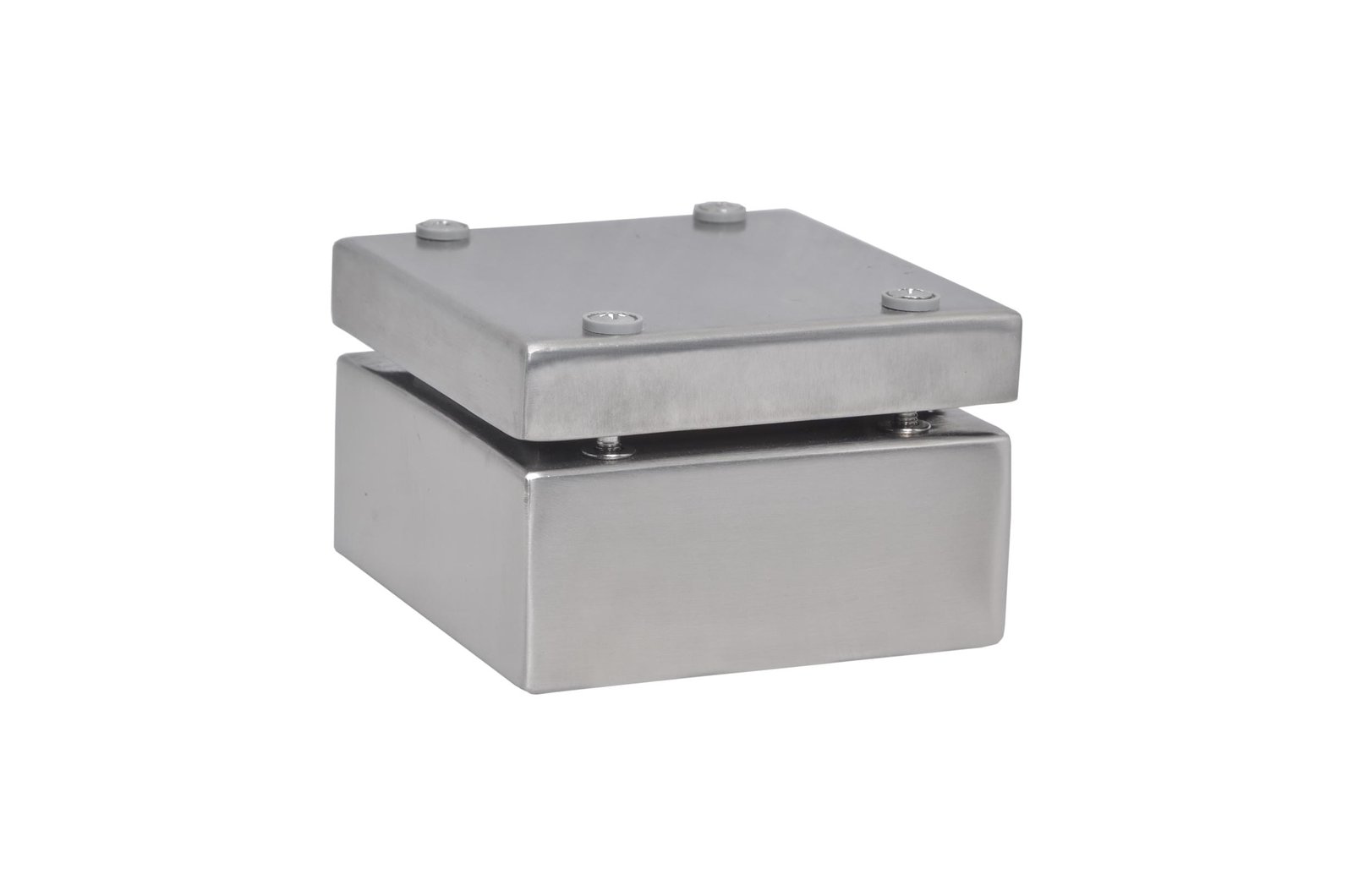

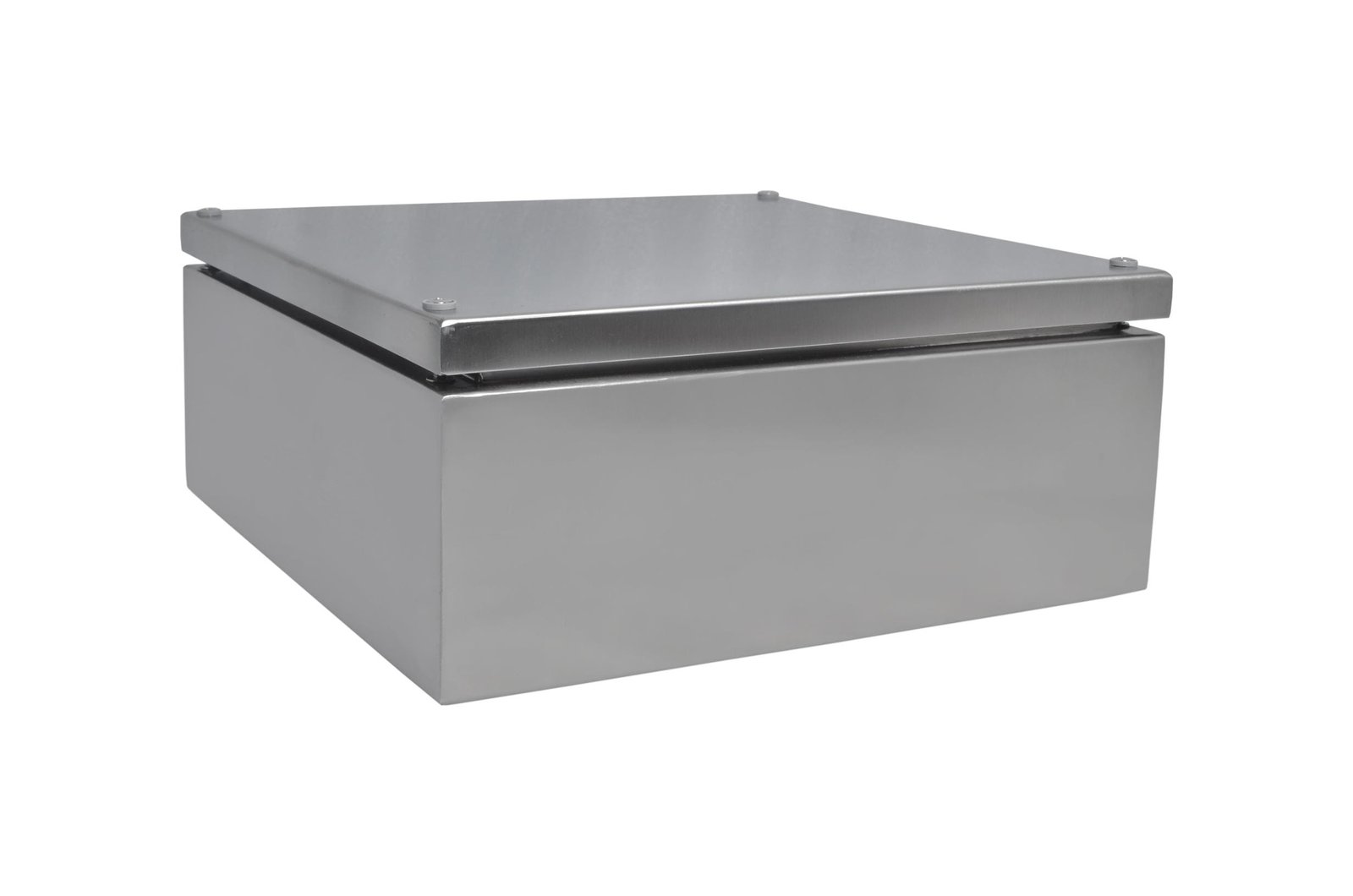

Image descriptionOGSJB01OG-SSJB-1001006110010061DownloadDownloadDownload

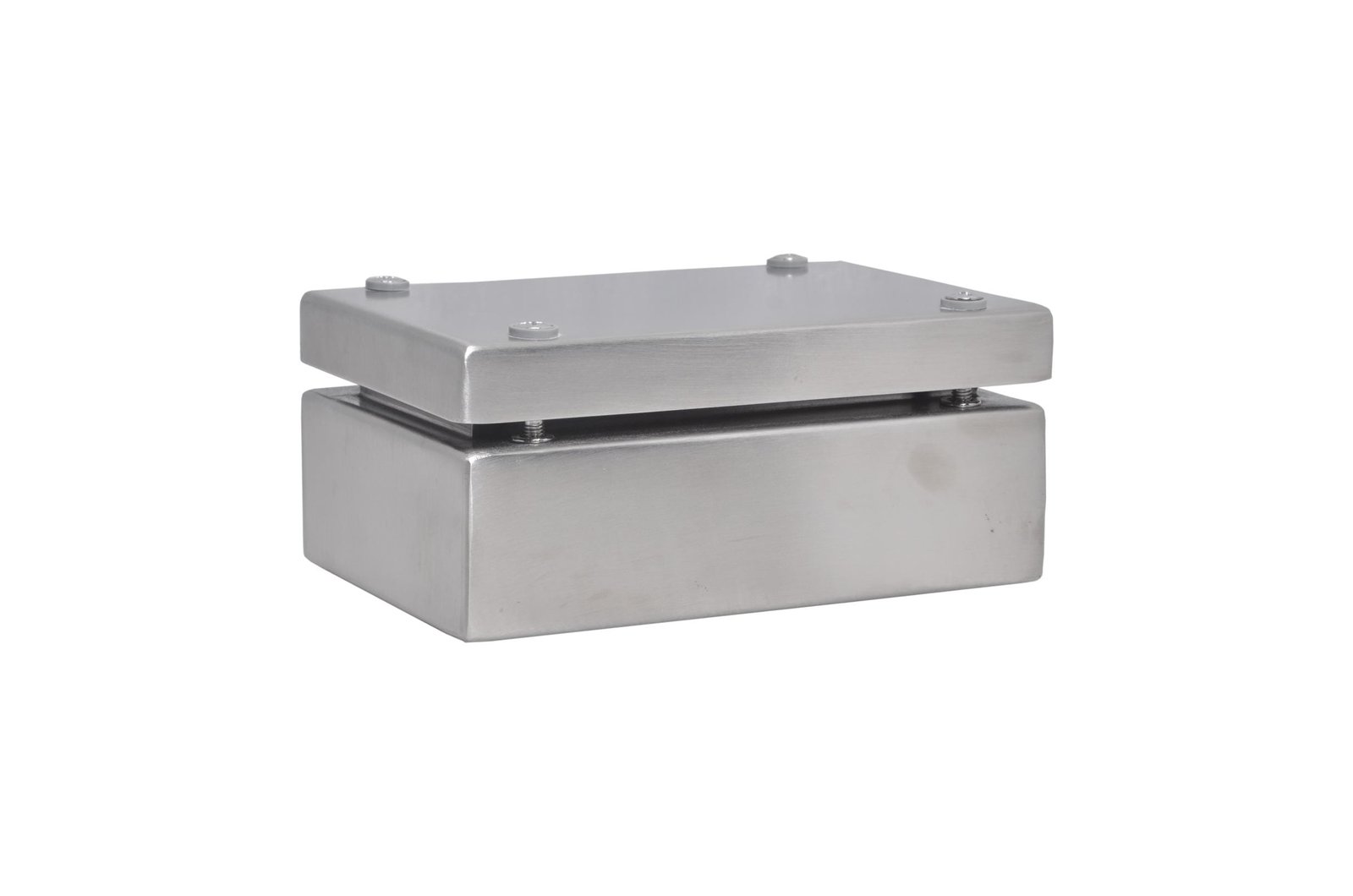

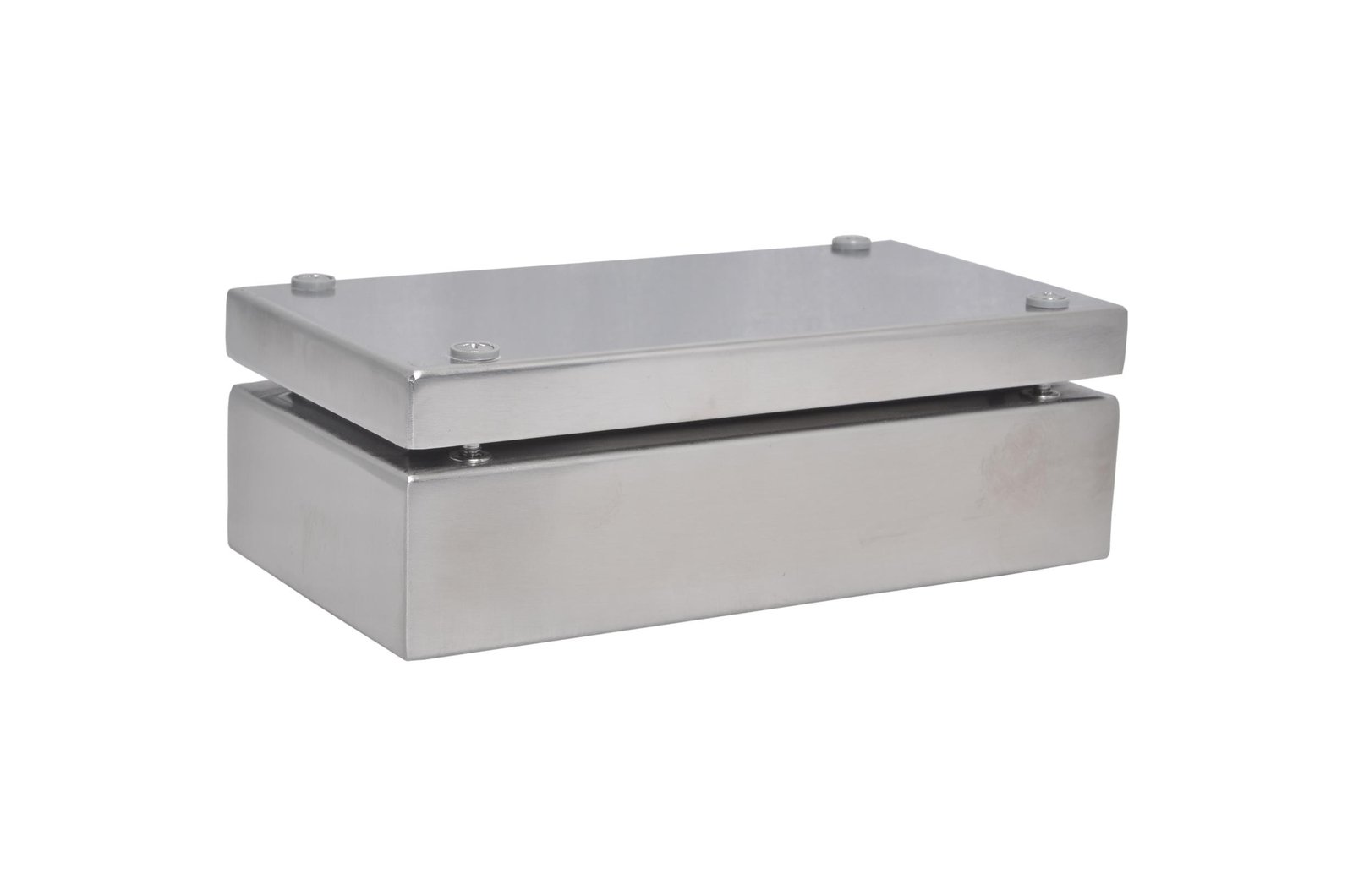

Image descriptionOGSJB02OG-SSJB-1501006115010061DownloadDownloadDownload

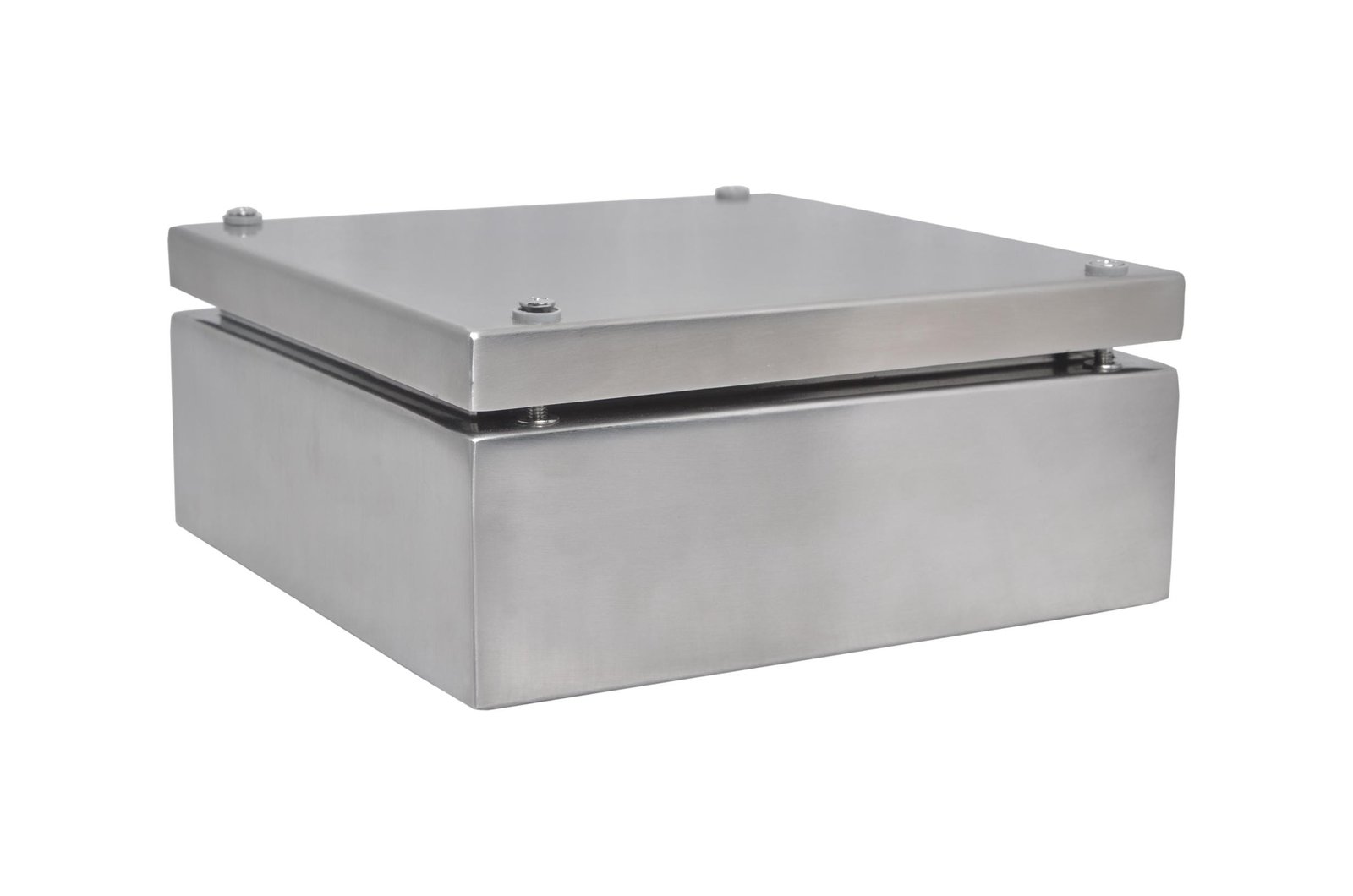

Image descriptionOGSJB03OG-SSJB-1501508115015081DownloadDownloadDownload

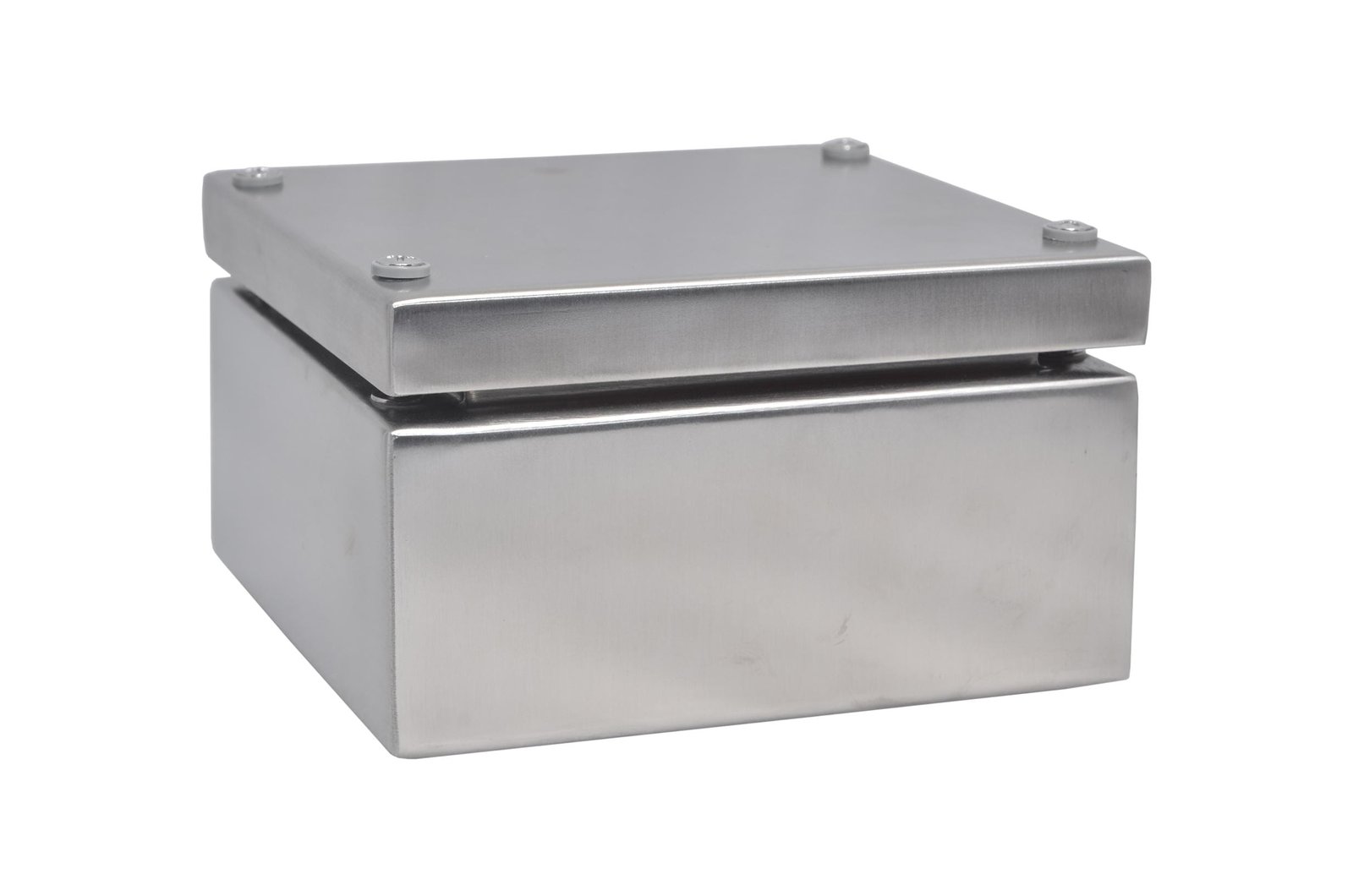

Image descriptionOGSJB04OG-SSJB-2001006120010061DownloadDownloadDownload

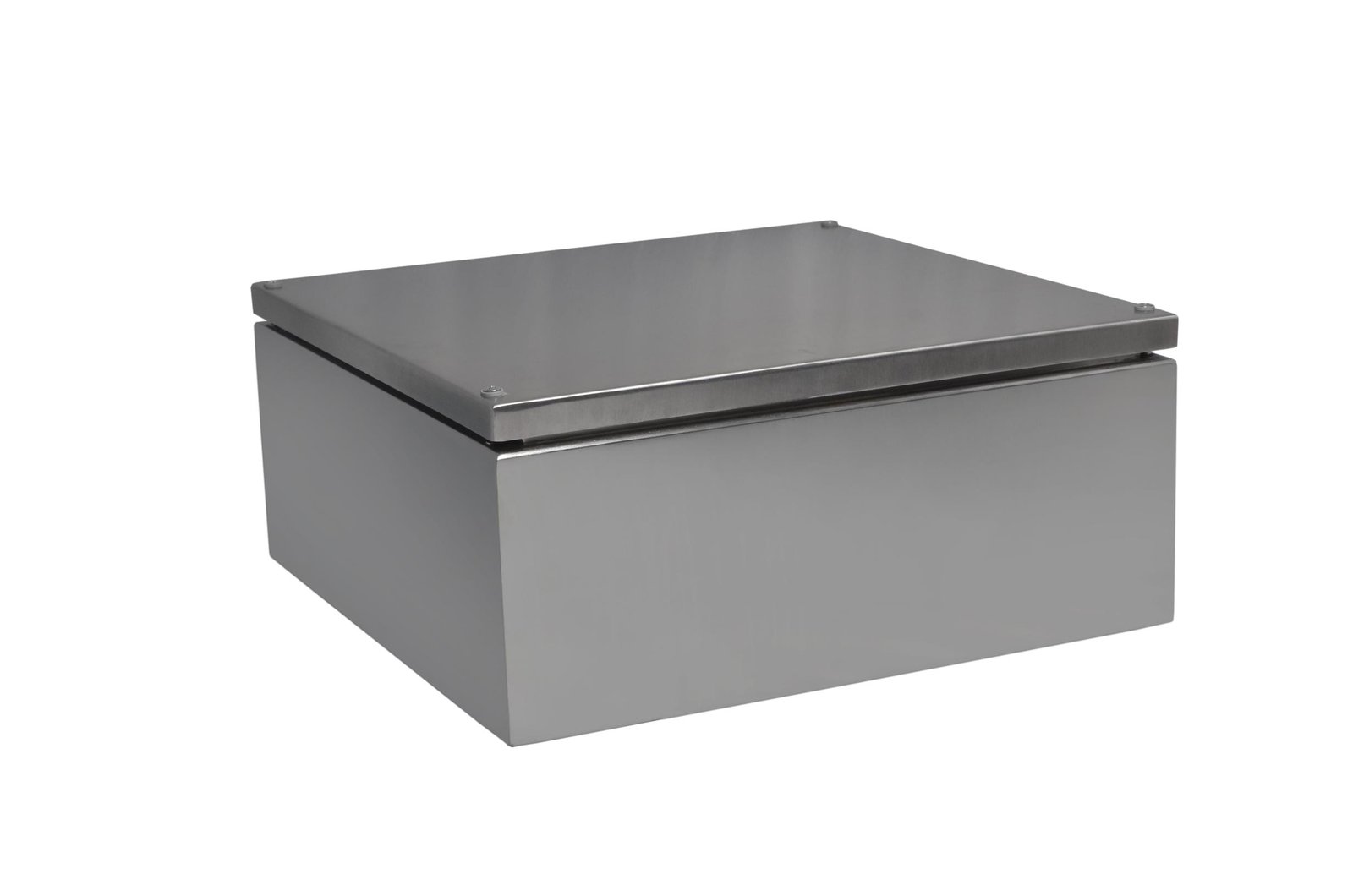

Image descriptionOGSJB05OG-SSJB-2002008120020081DownloadDownloadDownload

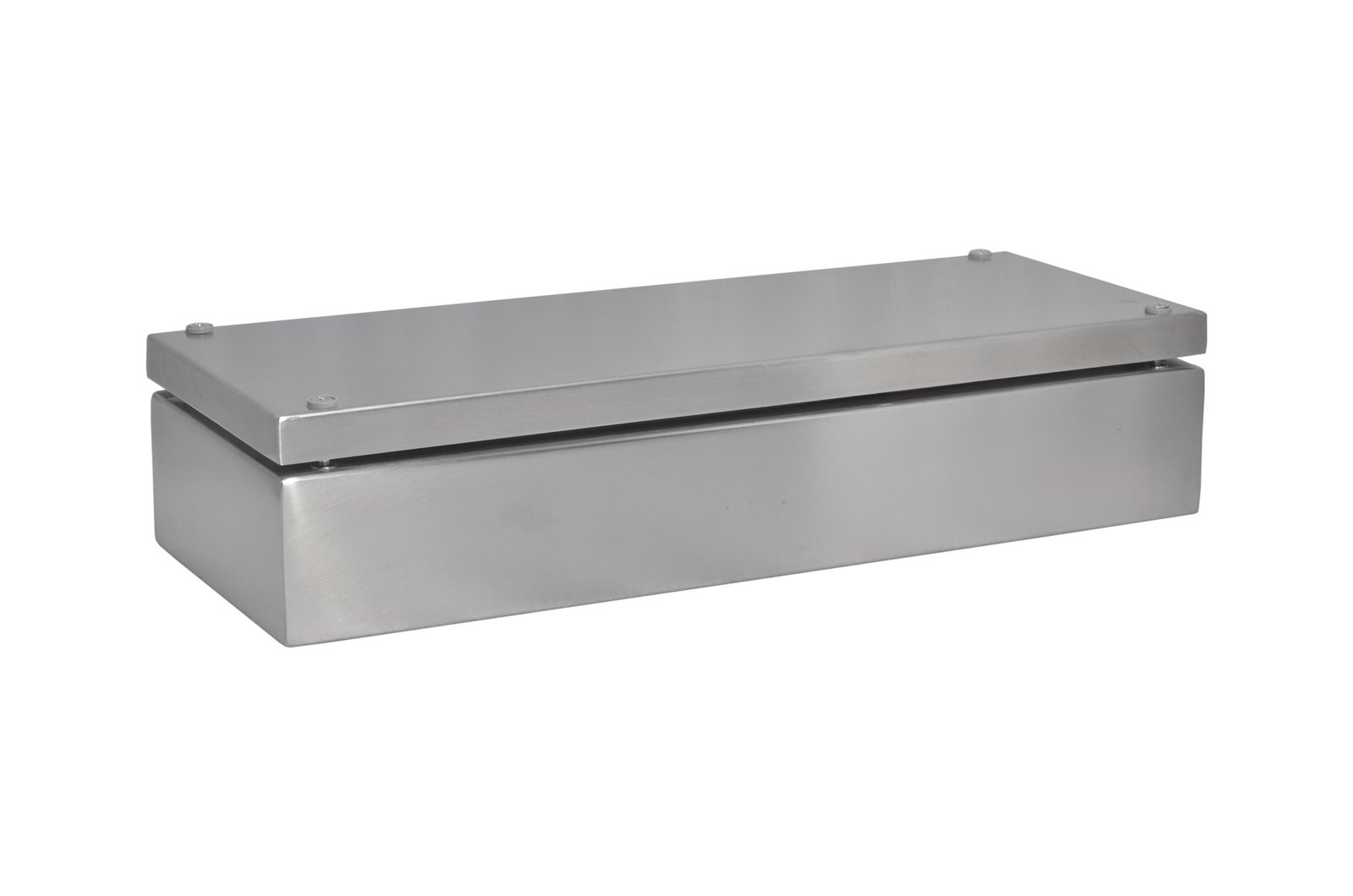

Image descriptionOGSJB06OG-SSJB-200200121200200121DownloadDownloadDownload

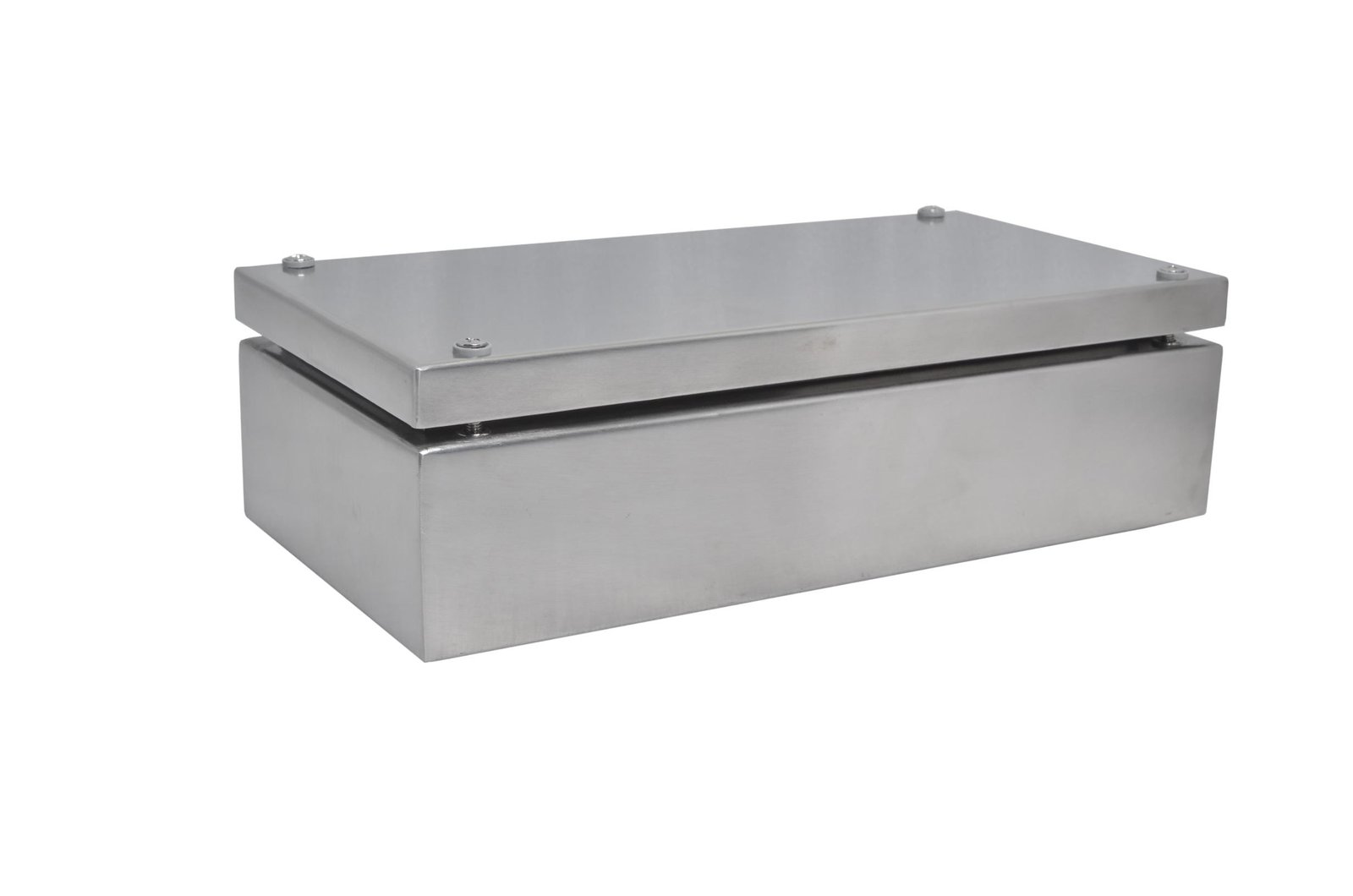

Image descriptionOGSJB07OG-SSJB-3001508130015081DownloadDownloadDownload

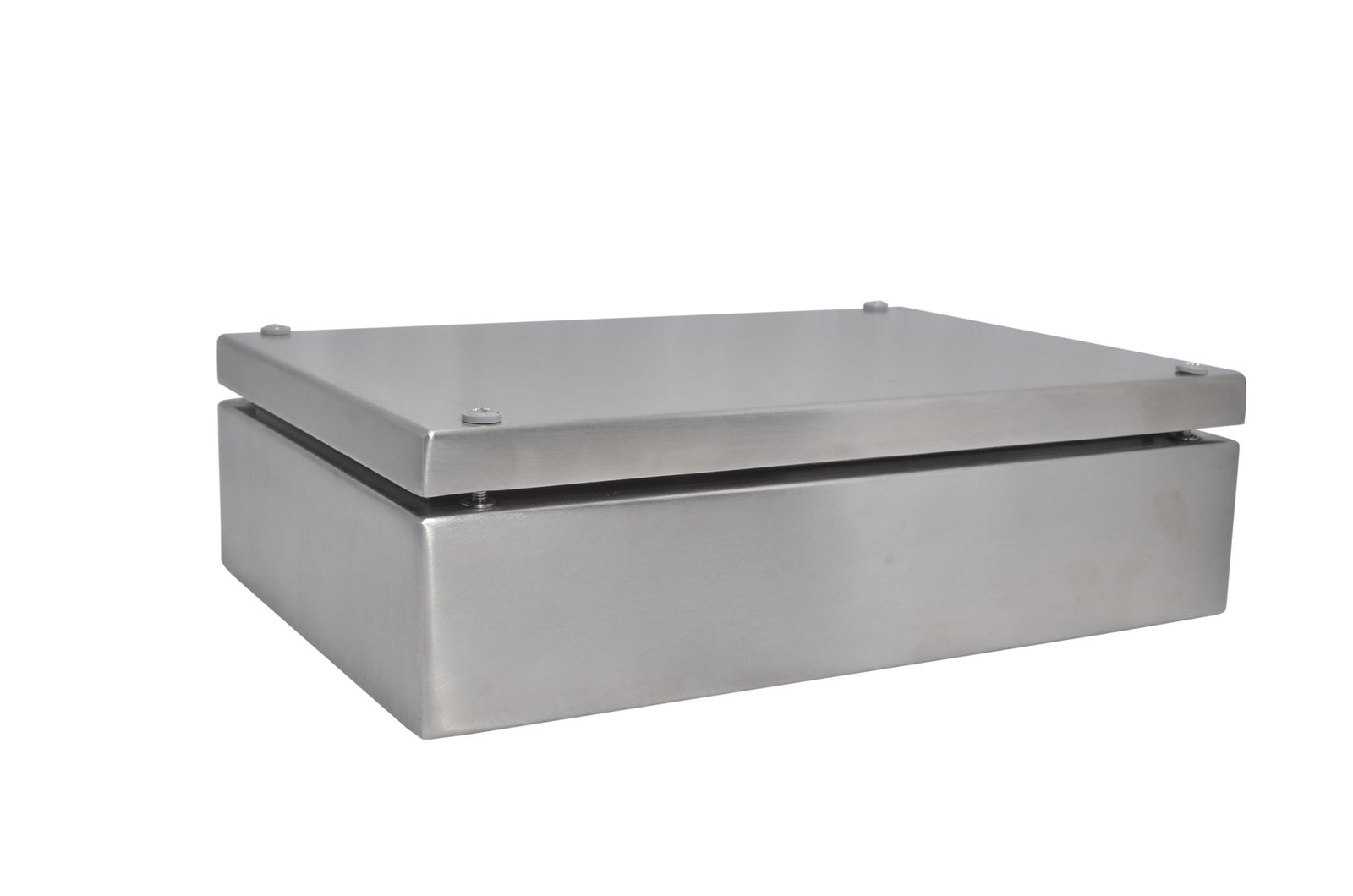

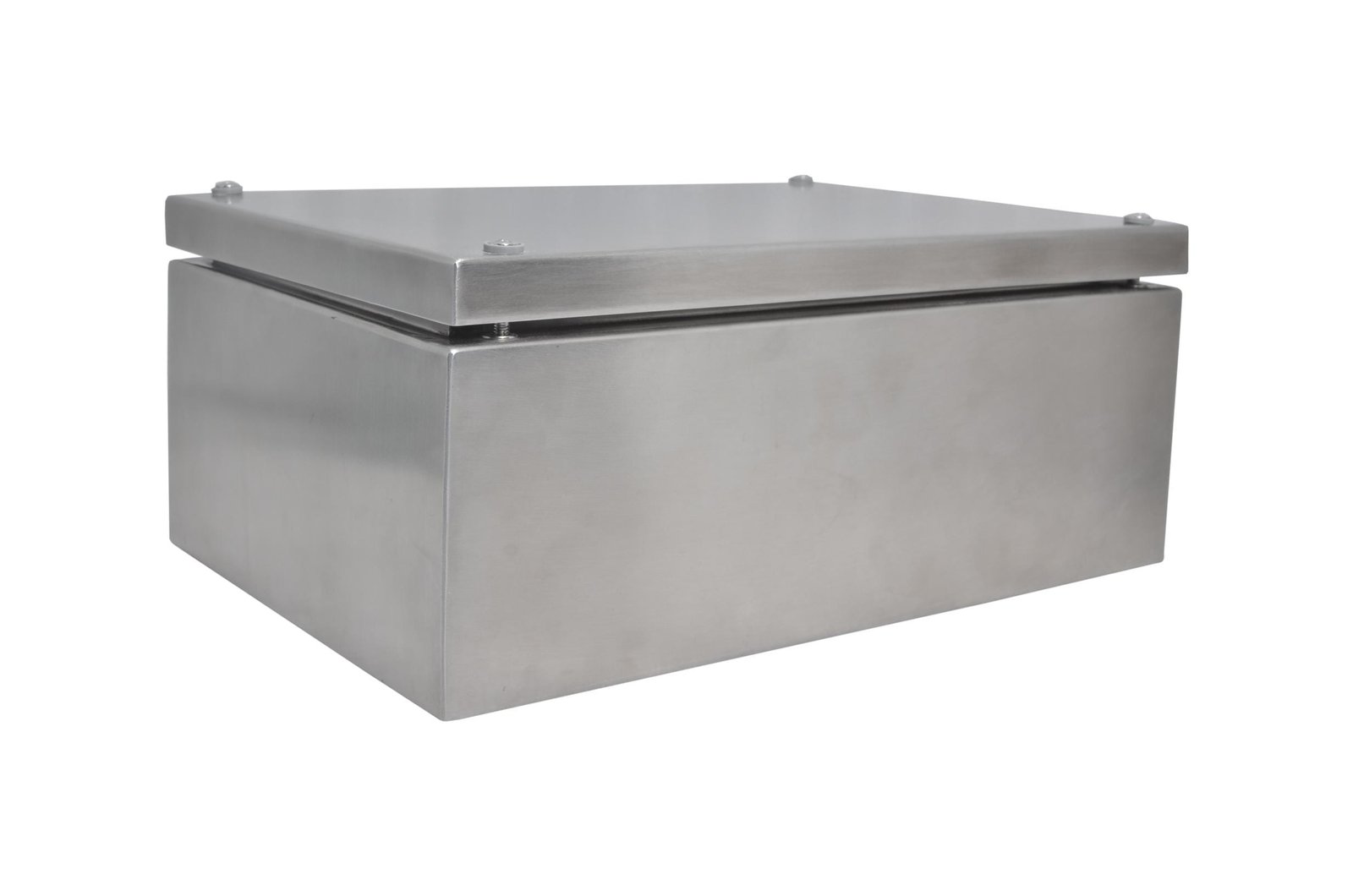

Image descriptionOGSJB08OG-SSJB-3002008130020081DownloadDownloadDownload
Image descriptionOGSJB09OG-SSJB-300200121300200121DownloadDownloadDownload
Image descriptionOGSJB10OG-SSJB-300300121300300121DownloadDownloadDownload
Image descriptionOGSJB11OG-SSJB-300300161300300161DownloadDownloadDownload
Image descriptionOGSJB12OG-SSJB-380380161380380161DownloadDownloadDownload
Image descriptionOGSJB13OG-SSJB-4001508140015081DownloadDownloadDownload
Image descriptionOGSJB14OG-SSJB-400200121400200121DownloadDownloadDownload

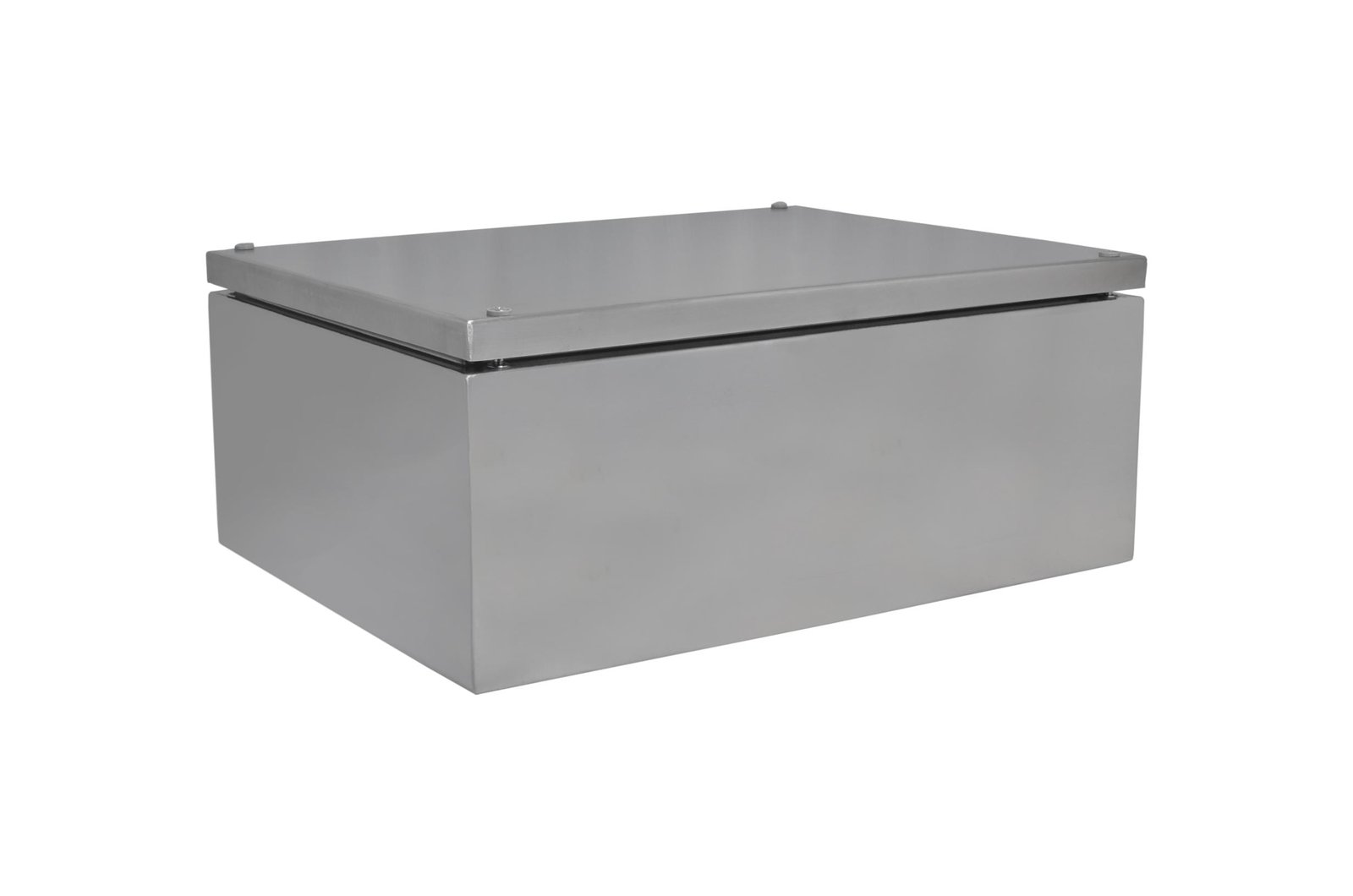

Image descriptionOGSJB15OG-SSJB-400300161400300161DownloadDownloadDownload

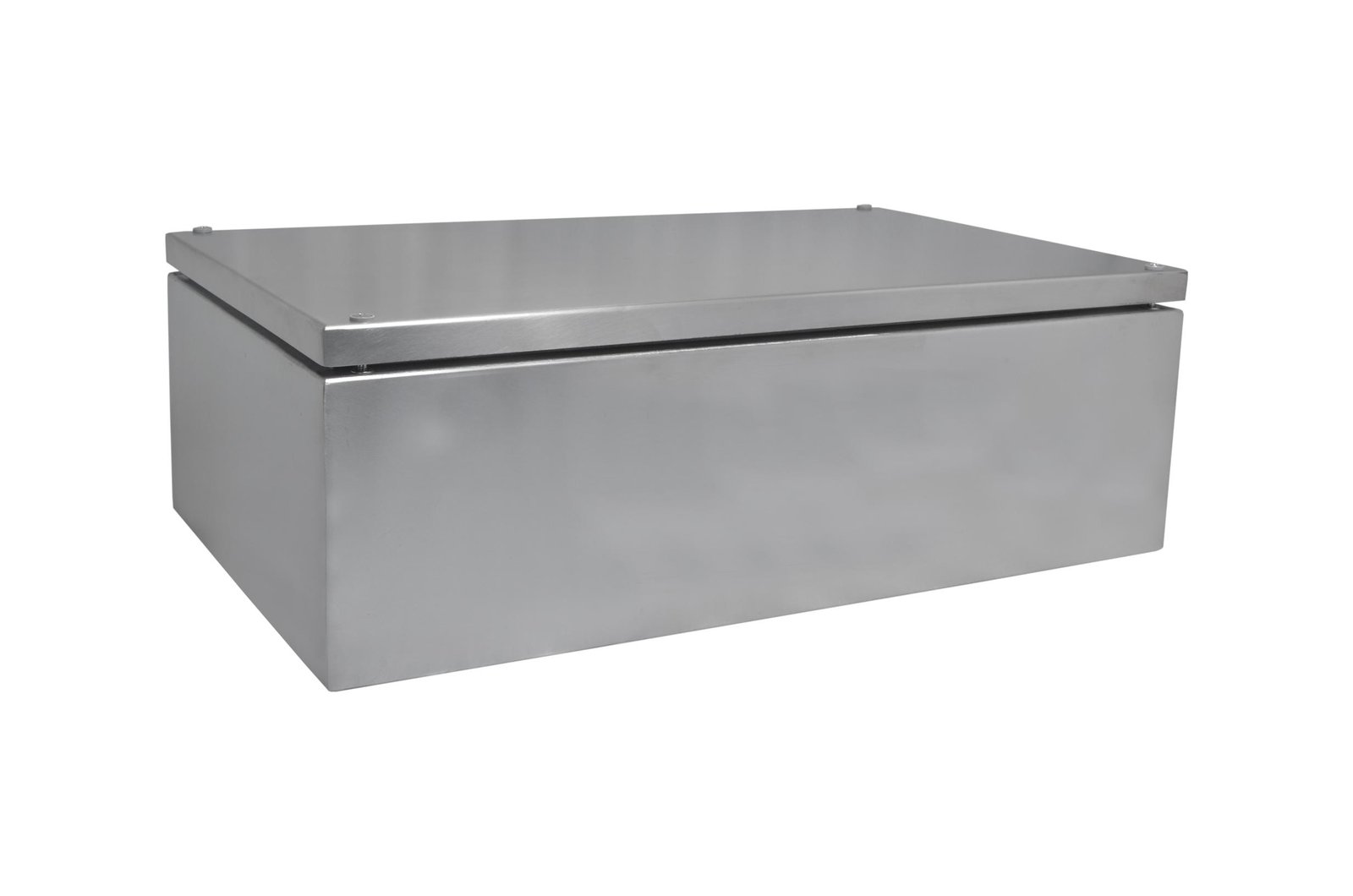

Image descriptionOGSJB16OG-SSJB-500300161500300161DownloadDownloadDownload

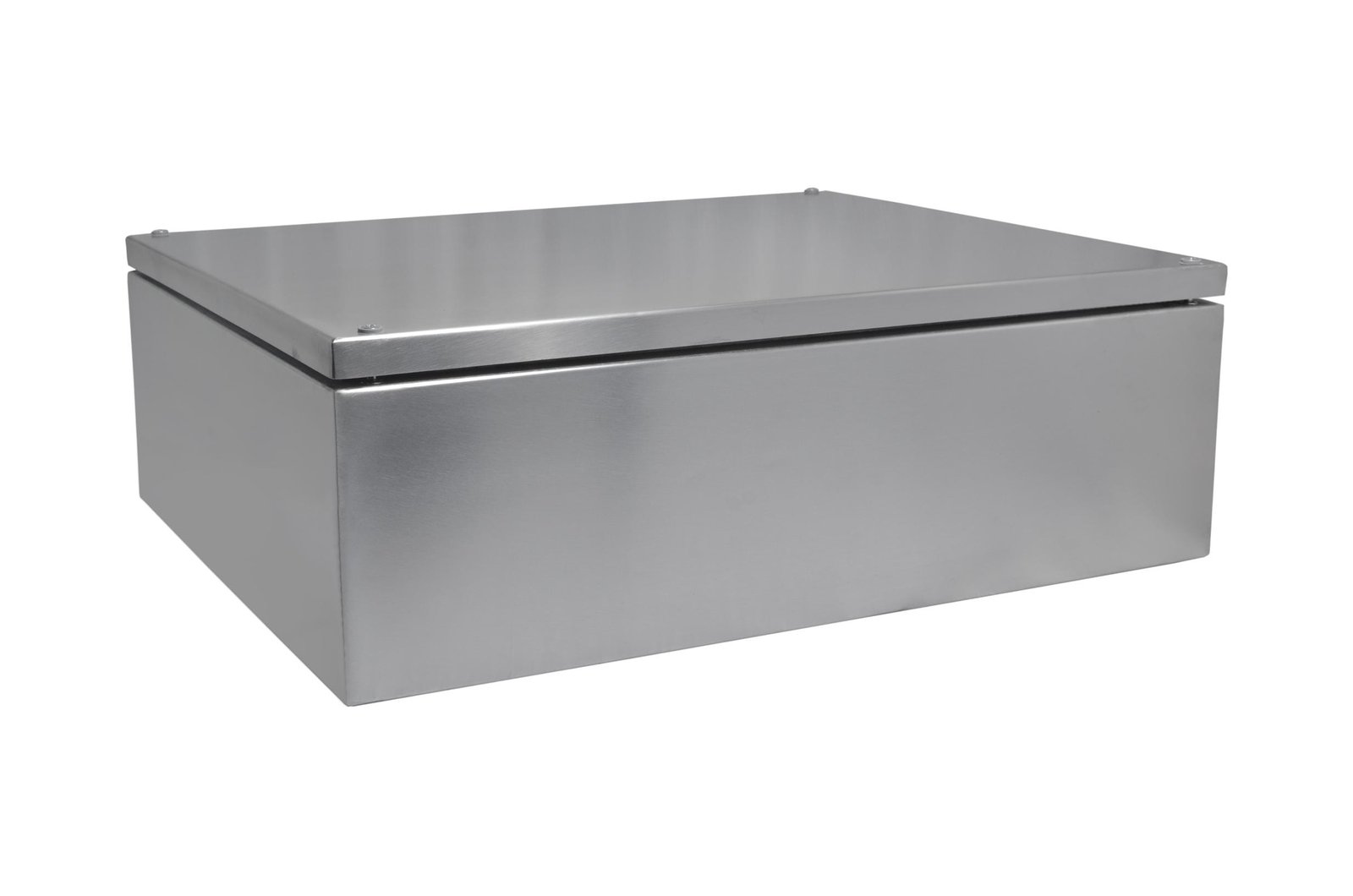

Image descriptionOGSJB17OG-SSJB-500400161500400161DownloadDownloadDownload

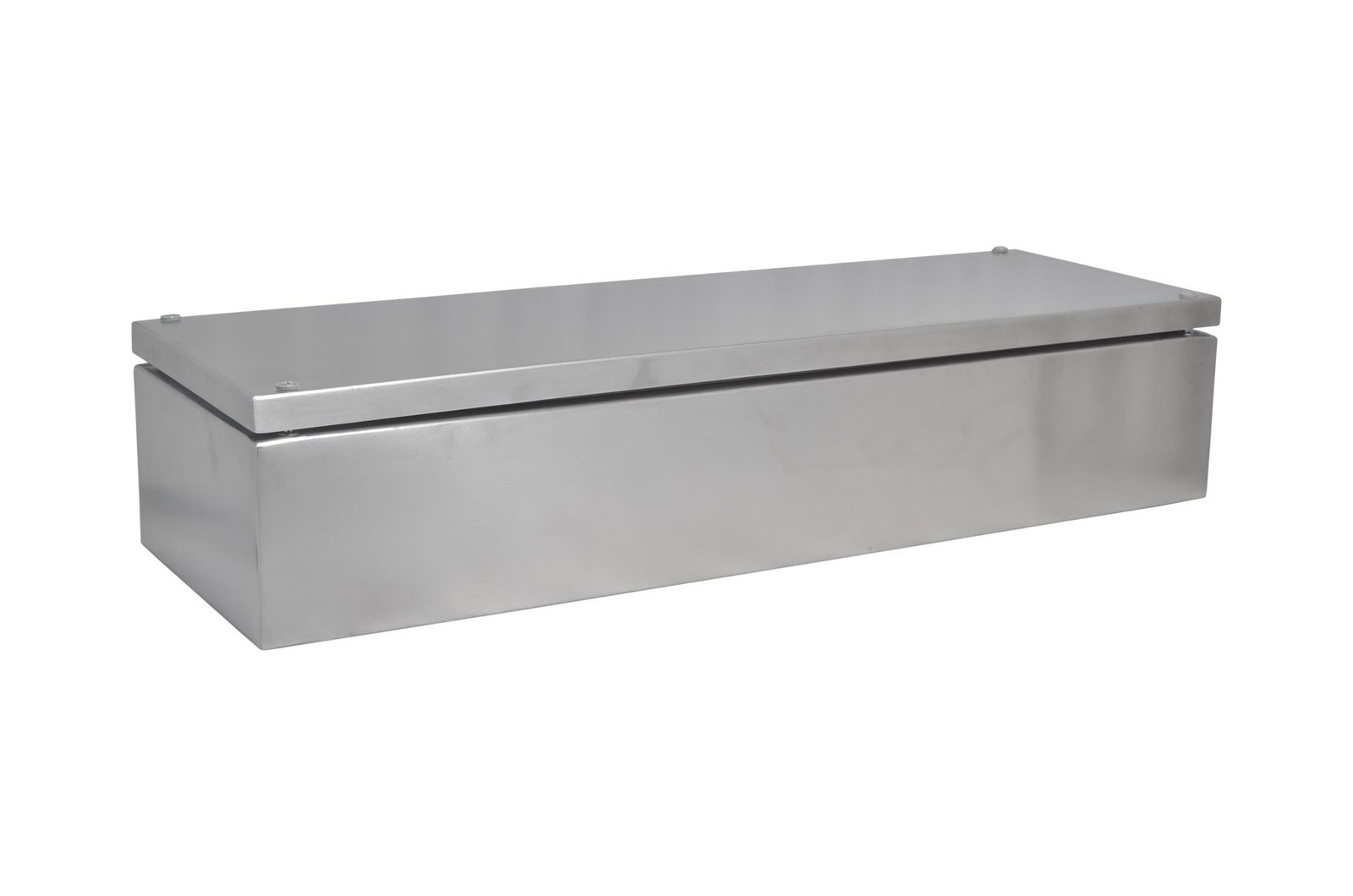

Image descriptionOGSJB18OG-SSJB-600200121600200121DownloadDownloadDownload
